Gate Installation Is Not a Fence Add-On: Why the Entrance to Your Property Deserves Its Own Plan

Most property owners spend weeks selecting the right fence material, style, and height. Then, almost as an afterthought, they ask about adding a gate. It sounds like a reasonable sequence. The gate is just an opening in the fence, right?

Not exactly. Gates are mechanically and structurally different from the fence panels around them. They carry more weight, absorb more force, and operate under far more stress than any static section of fencing. Treating gate installation as a secondary consideration is one of the most common reasons gates sag, bind, corrode prematurely, or fail outright within a few years of installation.

This article breaks down why gates deserve their own planning process, what actually goes into a proper installation, and the decisions that separate a gate that works beautifully for decades from one that becomes a recurring headache.

Why Gates Fail: The Real Problem Is Usually in the Planning

When a gate starts dragging along the ground or the latch stops catching, most people blame the hardware. Sometimes that is the culprit. But more often, the failure traces back to early decisions: undersized posts, wrong hinge placement, insufficient post depth, or choosing a gate style that was not suited to the intended use.

A wrought iron gate on a residential property in an older Chicago neighborhood, for instance, has to contend with freeze-thaw cycles that shift the ground repeatedly through the winter. If the posts were not set deep enough, or the concrete footings were undersized, that movement will throw the gate out of alignment within a couple of seasons. No amount of hardware adjustment fixes a foundation problem.

Understanding this helps frame the most important point: gate installation starts below grade, not at the hinge.

The Structural Demands Gates Place on Posts

A gate is essentially a lever. When it swings open, all that weight pulls against the hinge post. The longer the gate, the greater that leverage. A six-foot-wide driveway gate generates significantly more torque on its posts than a narrow pedestrian gate, even if both are made from the same material.

This is why gate posts are typically heavier, deeper, and more securely anchored than standard fence posts. For wrought iron or steel gates in Chicago, where the ground moves seasonally, posts are commonly set in concrete to a depth that goes below the frost line, which is roughly 42 inches in the Chicago area. Skipping this step or reducing post depth to save time is a false economy.

For double driveway gates, the center where the two panels meet also needs attention. Without proper drop rods or a ground latch, the center will drift and the panels will stop aligning correctly. These are not optional finishing touches. They are load-bearing elements of the design.

Swing vs. Slide: Choosing the Right Gate Type for the Space

One of the first real planning decisions is whether the gate should swing or slide. This depends on the available space on both sides of the opening, the grade of the driveway or pathway, and how the gate will be used day to day.

Swing gates are the more traditional option and suit most residential entrances well. They require clear space on the swing side, which can be a problem if the driveway slopes up sharply toward the house. A gate that opens inward on an uphill slope will bind against the ground before it can fully open.

Sliding gates solve that problem, but they need linear clearance along the fence line to travel. They also require a track or overhead guide system, and the post at the slide end has to handle the full weight of the gate as it moves. For a heavy iron gate, that is a substantial load.

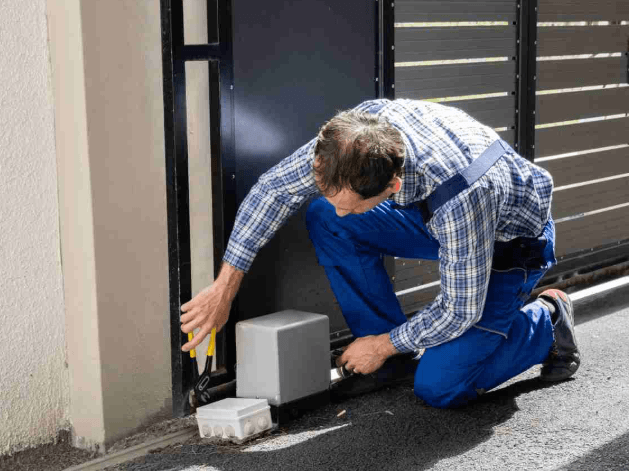

Automated gates, whether swing or slide, add another layer of planning: power access, operator sizing, loop detection for vehicles, and safety reversals. Rushing through these decisions during the fence planning stage is where many installations go wrong.

Materials Matter More for Gates Than for Fences

Fence panels are static. They resist wind and provide visual boundaries, but they do not move. Gates cycle repeatedly, every single day. That repetitive motion concentrates wear on specific points: hinges, latches, the frame corners where welded joints absorb stress.

This is why material choice carries more consequence for gates than it does for fence panels.

Wrought iron and steel are the strongest options for larger gates. They can be fabricated with heavier gauge material at stress points and welded in ways that distribute load evenly. The trade-off is that they require periodic painting to prevent rust, which is particularly relevant in Chicago’s wet winters.

Aluminum is lighter and corrosion-resistant, making it a practical choice for smaller pedestrian gates or properties where rust is a persistent problem. However, aluminum does not carry the same structural integrity for heavy or wide gates. It can be the right answer in the right context, but it is not a universal upgrade.

Wooden gates have a warm, traditional look that many homeowners prefer. They are also the most vulnerable to warping and moisture damage over time, especially in climates with significant humidity variation. A well-constructed wood gate with proper sealing and quality hardware can last many years, but it demands more maintenance than iron or aluminum.

Contractors who handle proper gate installation will walk through material suitability relative to gate size, frequency of use, and local climate before recommending anything.

Automation: When It Adds Value and When It Creates Problems

Automated gate systems have come down in cost considerably, and they are no longer limited to high-end residential properties or commercial facilities. For driveways with frequent vehicle traffic, they add real convenience and security.

But automation does not fix a gate that was not designed for it. Adding a motor to an existing gate that was built for manual use, without reinforcing the posts or checking that the hardware can handle the operator load, will accelerate wear and create reliability problems.

The right sequence is to plan for automation from the beginning, so the structural elements are sized appropriately. Operators from brands like LiftMaster and DoorKing are widely used in the Chicago market and have specific installation requirements for post strength and gate weight. Working with a contractor who understands those requirements before the posts go in the ground prevents costly retrofitting later.

Code Compliance and Permit Considerations in Chicago

Chicago has specific requirements for fence and gate installations, particularly for properties near alleys, public rights-of-way, and commercial zones. Maximum fence heights vary by zone, and there are setback rules that can affect where a gate can be positioned relative to the property line.

For commercial properties or multi-unit residential buildings, gate installations may require a permit. Skipping the permit process might save time upfront, but it creates problems when the property sells, when a violation is flagged during an inspection, or when an insurance claim is filed related to the gate.

A licensed and insured contractor will flag these requirements as part of the planning process, not as an afterthought when the work is already done.

Key Takeaways

• Gate installation is structurally distinct from fence installation; posts must be sized and anchored to handle the specific weight and swing load of the gate.
• The gate type (swing vs. slide) should be chosen based on available clearance, driveway grade, and daily usage patterns, not aesthetics alone.
• Material choice matters more for gates than for fence panels because gates are subject to constant mechanical stress.
• Automation should be planned from the beginning, not retrofitted onto a gate that was not built to handle a motor operator.
• In Chicago, gate and fence installations may require permits depending on zone, property type, and proximity to the right-of-way. Always verify before starting work.

Frequently Asked Questions

How deep should gate posts be set in Chicago? In the Chicago area, gate posts should be set below the frost line, which is approximately 42 inches deep. Shallower footings are vulnerable to heaving from freeze-thaw cycles, which will throw the gate out of alignment over time. For heavier gates, wider concrete footings are also recommended to distribute the load.

Can I add a gate to an existing fence? In many cases, yes, but it depends on whether the existing fence posts near the opening are strong enough to function as gate posts. Standard fence posts are not always sized to handle gate weight and swing load. A proper assessment should look at post gauge, depth, and footing condition before any gate is hung.

What is the difference between a swing gate and a cantilever slide gate? A swing gate opens on a hinge and requires clear space on the swing side. A cantilever slide gate travels along the fence line without a ground track, using a counterbalanced carriage system. Cantilever gates are common in Chicago driveways where ground-level tracks would be impractical in winter conditions with snow and ice buildup.

How do I know if my gate needs to be replaced rather than repaired? If the frame is significantly warped, if welds have cracked at structural points, or if the post itself has shifted in the ground, repair may only be a temporary fix. Surface rust and worn hardware are usually repairable. Structural issues with the frame or post generally point toward replacement.

Who should I contact for gate installation in Chicago? Look for a contractor who is licensed, bonded, and insured, with experience in both fabrication and installation. Americana Iron Works & Fence has been serving Chicago property owners for over 30 years and handles everything from custom iron gates to automated driveway systems, with in-house fabrication for precise, code-compliant work. Getting a free quote before committing helps you understand what the project actually involves.

See also: 5 Reasons Businesses Switch To Professional Accounting Firms

Closing Thoughts

A gate is the most used, most visible, and most mechanically demanding element of any fencing system. Planning it as an extension of the fence, rather than as a standalone structural project, is where most problems start.

The decisions made before a single post goes into the ground, material, type, post depth, automation readiness, and code compliance, determine how the gate performs for the next 20 years. Getting those decisions right takes time and expertise. But it also means not having to revisit the same entrance in three years with a sagging frame and stripped hinge screws.

If a gate project is on the horizon, the best first step is a proper site assessment from someone who understands both the fabrication and the installation side. That conversation costs nothing and changes the outcome considerably.
