In industrial operations where liquids or gases are transported through pipelines, cleanliness, efficiency, and safety are not optional—they’re essential. Over time, residues, blockages, or contamination can compromise flow quality and lead to major issues. One of the most widely adopted methods to maintain pipeline performance is pigging. But if you’ve ever wondered how pigging works, this article provides a clear, step-by-step explanation of the process, its components, and its growing role in modern industries.
What Is Pigging?
Before we dive into how pigging works, let’s first understand the basics. Pigging refers to the process of inserting a device—known as a “pig”—into a pipeline to perform various tasks such as cleaning, inspecting, separating products, or recovering materials. The pig moves through the pipeline, propelled by pressure, and carries out its function without halting the flow of the product.
Pigs can range from simple foam tools to high-tech devices equipped with sensors, GPS, and magnetic scanning capabilities. Regardless of the design, the objective remains the same: ensure the pipeline operates efficiently, safely, and with minimal product waste.
Why Is Pigging Necessary?
Pigging addresses several pipeline challenges:
- Build-up of deposits like wax, scale, or sludge
- Cross-contamination between different products
- Detection of internal damage, such as cracks or corrosion
- Product recovery, reducing wastage during changeovers
Industries such as oil and gas, chemicals, food and beverage, water treatment, and even pharmaceuticals use pigging to maintain regulatory standards and avoid costly downtime.
See also: Integrating Into Utah’s Thriving Tech Sector
How Pigging Works: A Step-by-Step Process
Understanding how pigging works involves knowing how pigs are introduced into the system, how they move through the pipeline, and what happens once they complete their task. Here’s a step-by-step breakdown:
Step 1: Pipeline Assessment and Pig Selection
Before pigging begins, operators assess the pipeline’s condition. Key considerations include:
- Diameter and length of the pipeline
- Type of fluid or gas being transported
- Pipe layout (bends, valves, elevation changes)
- Purpose of the pigging (cleaning, inspection, product separation)
Based on this assessment, the right type of pig is selected. For example:
- Foam pigs for lightweight cleaning
- Cup pigs for pushing product
- Brush pigs for heavy-duty scrubbing
- Smart pigs for inline inspection
Step 2: Pig Launcher Setup

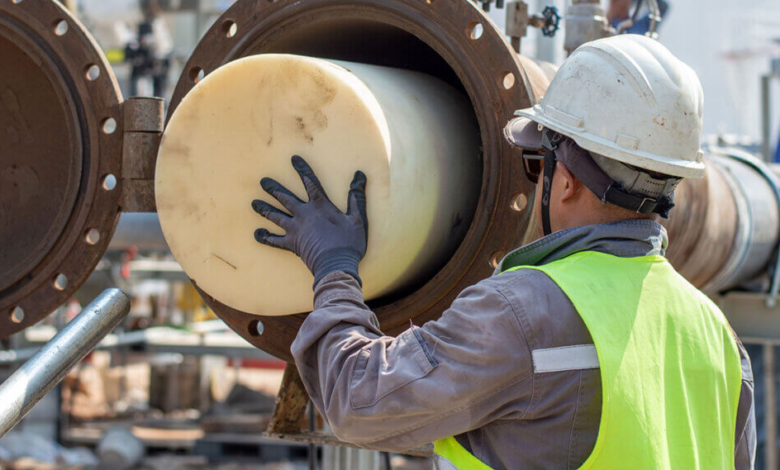

The pig is placed inside a specialized chamber known as the pig launcher. This is usually a side branch attached to the main pipeline. The launcher is designed to insert the pig safely without interrupting the main flow.
Once the pig is loaded, the launcher is sealed, and the pressure inside is gradually increased to match the pipeline’s internal pressure. This prevents pressure shocks that could damage the system.
Step 3: Pig Propulsion
This is where the main action takes place in understanding how pigging works. The pig is pushed through the pipeline by the flow of the product (e.g., oil, water, gas), or by an external propellant like compressed air or nitrogen.
As it travels:
- Cleaning pigs scrape off residue
- Separation pigs keep different fluids apart
- Inspection pigs scan the inner pipe wall
The pig moves at a controlled speed, depending on pipeline pressure, the product’s viscosity, and pig design.
Step 4: Pig Tracking and Monitoring
Operators track the pig’s location using a variety of techniques:
- Acoustic sensors
- Electromagnetic detectors
- GPS (for smart pigs)
- Pig signalers (also called pig detectors or pig passage indicators)
Monitoring is essential to ensure the pig isn’t stuck or damaged mid-operation. In smart pigging, real-time data may be transmitted back to a control station.
Step 5: Pig Receiver Operation
At the end of the line, the pig is collected in a chamber called the pig receiver. Similar to the launcher, the receiver allows safe removal of the pig without stopping product flow. Once removed, the pig can be examined, cleaned, or replaced, depending on wear and tear.
In smart pigging, collected data is downloaded and analyzed for signs of defects, corrosion, or damage inside the pipeline.
Pigging Equipment Overview
To better understand how pigging works, here’s a brief overview of the main components:
- Pig: The tool itself, which could be foam, cup, brush, or intelligent type
- Pig Launcher: A pressurized chamber used to insert the pig into the pipeline
- Pig Receiver: A chamber that captures and removes the pig at the end of its journey
- Tracking Tools: Devices used to locate and monitor the pig in real-time
- Control Systems: Automated or manual systems to manage pressure, pig speed, and data collection
Where Pigging Is Commonly Used
Many industries rely on pigging to maintain clean, efficient pipelines. Here are a few examples:
1. Oil and Gas Pipelines
Pigging is essential for cleaning long-distance crude oil and natural gas pipelines. It removes paraffin, checks for corrosion, and ensures high throughput.
2. Chemical Processing
In multi-product pipelines, pigging separates chemicals to avoid contamination and clean between batches.
3. Food and Beverage
Hygienic pigging systems are used in milk, juice, and sauce pipelines to recover leftover product, minimize waste, and maintain sanitation standards.
4. Water and Wastewater
Pigging helps prevent scale, biofilm, and corrosion in water lines and sewage pipelines.
5. Pharmaceuticals
Sterile pigging is used in clean-in-place (CIP) systems, supporting strict regulatory compliance in medicine manufacturing.
The Future of Pigging
Technological advancements are making pigging even more powerful:
- Real-time diagnostics from smart pigs allow for proactive maintenance
- Eco-friendly pigging systems reduce energy usage and waste
- Automated launchers and receivers increase safety and reduce human error
- Data-driven maintenance planning ensures predictive repair schedules
As industries demand better safety, efficiency, and environmental performance, pigging will continue to be a vital part of pipeline infrastructure.
Conclusion
To sum it up how pigging works is a fascinating process that combines mechanical engineering, fluid dynamics, and smart technology. Whether it’s cleaning the inside of a crude oil pipeline, inspecting for corrosion in a water line, or recovering valuable product in a food-grade pipe, pigging ensures pipeline systems remain reliable, safe, and cost-effective.
Understanding this behind-the-scenes operation gives you insight into one of the most important maintenance processes supporting modern industry—and it’s likely working silently beneath our feet every day.
